Moteur Volcan
Spécifications du produit
| Nom de la marque: | Volcan Électrique | Numéro de modèle: | VOL-BL050C110 | Taper: | Moteur CC sans balais |
| Puissance de sortie: | 500W | Tension CC: | 110V | Plage de vitesse: | 1500 RPM |
| Contrôleur: | Personnalisé, Facultatif | Frein: | Facultatif | Classe d'isolation: | Classe B/F/H |
| Enceinte: | IP44 / IP54 | Poteaux: | 4P., 6P., 8P… | Fil: | 100% cuivre |
| Logement: | Aluminium | Efficacité: | jusqu'à 84% | ||
| Devoir: | S1 (continu) | Lieu d'origine: | Zhejiang, Chine (Continent) | Standard: | CEI / IL N'Y A PAS |
| Application: | Bateau, Voiture, VE, Ventilateur, Appareil électroménager, Moteur de traction, Pompe, systèmes de climatisation pour bus ,Autre | ||||
Description du produit

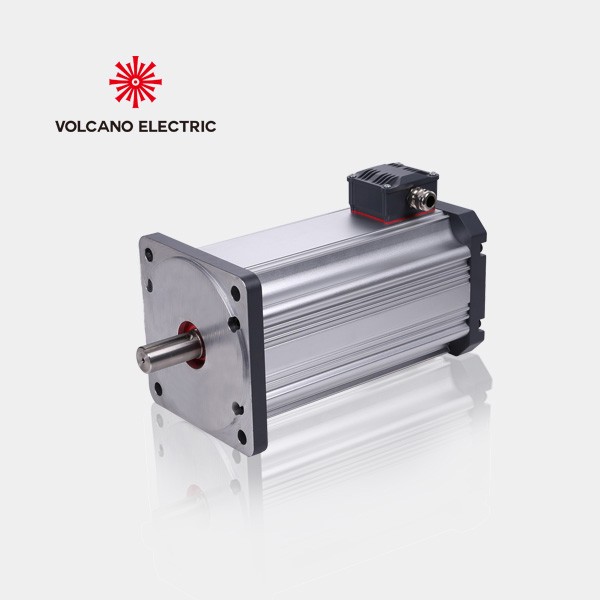

Volcano Electric BLDC Motor 110V 500W 1500RPM, duty continues, halls sensor, no controller, it provides 3.18Nm at rated speed of 1500RPM, the motor working under continues duty 1. Gross weight of the motor is round 5kgs. Mounting method of this motor is B15, frame model is 195L.
We have different mounting method and different frame size depends on our clients final application. We are able to make NEMA series and IEC standard frame series. We aim to make higher efficiency motor up to more than 90%. For this motor, it gives round 85% efficacité. The motor come with out a controller but with hall sensor.
BLDC Motor is widely used in many industries. It has power-saving advantages compared with other type motors. Also its running speed can be controlled. Simply speaking, with a suitable controller, we can make the motor running under our mind. In another way, precision control can also save energy, for these motors connect with battery power, in this way, the motor can also save the battery life.
Si vous avez un intérêt pour ce moteur, n'hésitez pas à nous contacter parinfo@volcanomotor.com
Volcan Électrique moteur à courant continu sans balais110V 500W 1500RPM delivers a rated torque of 3.18Nm at 1500RPM and operates under continuous duty (S1). It includes a Hall sensor but does not come with a controller. The motor weighs approximately 5kg and is built with a B15 mounting and a 195L frame.
We offer various mounting options and frame sizes depending on the specific requirements of your application. Both NEMA and IEC frame standards are available upon request.
We aim to deliver motors with high efficiency over 90%. This particular model achieves around 85% efficacité. BLDC motors are known for their energy savings compared to other motor types and offer excellent speed control. When equiped with a suitable controller, the motor can be precisely controlled for both performance and energy optimization. This is especially beneficial when used with battery power, helping to extend battery life.
Si vous avez un intérêt pour ce moteur, n'hésitez pas à nous contacter par info@volcanomotors.com
Images détaillées
Liste des moteurs sans balais
| Type de moteur | Sortir | Tension | Charger | Vitesse | Couple nominal | Poteaux | Efficacité | Bruit |
| KW | V | UN | RPM | N.m | % | dB | ||
| VOL-BL020C24 | 0.2 | 24 | 10.7 | 1500 | 1.27 | 8 | 89 | 62 |
| VOL-BL050C110 | 0.5 | 110 | 5.9 | 1500 | 3.18 | 8 | 84 | 60 |
| VOL-BL100C30 | 1 | 30 | 43 | 1200 | 7.96 | 8 | 88 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 63.3 | 4200 | 2.73 | 8 | 79 | 60 |
| VOL-BL120C36 | 1.2 | 36 | 39.7 | 2270 | 5.05 | 8 | 84 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL130C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL150C24 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
| VOL-BL150C310 | 1.5 | 310 | 6.2 | 3500 | 4.09 | 8 | 89 | 61 |
| VOL-BL200C24 | 2 | 24 | 98.6 | 3360 | 5.68 | 8 | 84.5 | 61.5 |
| VOL-BL410C48 | 4.1 | 48 | 110.2 | 2580 | 15.18 | 8 | 88 | 61.5 |
Avantages des moteurs CC sans balais
- Less Maintenance and Long Service Life – No brushes or commutator wear
- Silent operation – No brush contact, resulting in significantly reduced noise
- High Power-to-Weight Ratio
- Haute efficacité – In general higher than 90%
- Low Temperature Rise – Better heat dissipation due to optimized winding design
- Reduced Electromagnetic Interference (EMI)
Moteurs personnalisés
Pour moteurs personnalisés, veuillez contacter notre technicien, Ordinaire, nous devons connaître les informations suivantes pour obtenir une proposition professionnelle:
- Type de moteur – Brushed or brushless (based on your preference)
- Puissance de sortie – Specify in watts, puissance, ou couple requis à la vitesse nominale
- Tension – e.g. 12À DC, 48À DC, 220V et
- Vitesse – Required RPM at full load voltage
- Application – For example: Traction, pompage, etc..
- Duty Cycle – Most motors are rated for continuous operation, but we can also supply motors for intermittent use
- Frame/Configuration – Based on IEC standards; flange and shaft can be customized to your drawings
- Controller Functions – Such as forward/reverse, vitesse variable, acceleration curve, etc..
