Volcano Motor
Product Specifications
| Brand Name: | Volcano Electric | Model Number: | BLDC1.5-100 | Type: | Brushless DC Motor |
| Output Power: | 2 HP (1500W) | DC Voltage: | 72V | Speed Range: | 3200 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | up to 92% | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems ,Other | ||||
Product Description
This type 72vdc 2hp Brushless DC is popular in the market. The voltage can be designed 24VDC, 36VDC, 48VDC 72VDC 96VDC etc. We can help customers to fix the final type requires knowing the requirements of the working application, such as rated torque, rated speed, size, rated power, etc. While determining which Brushless DC Motor best fits the requirements, the controller must be considered as well, as this goes hand in hand with the operation of the Brushless DC Motor. Environment is also very important to consider. Applications requiring a harsh, damp environment may require motors with specific IP ratings.
High torque, high performance and smaller size is Brushless DC motor’s advantages, so now Brushless DC motor run widely in many applications.With permanent magnets which rotate within a fixed armature, the BLDC motors features a brushless commutation design for long lasting performance.
BLDC Motors with Speed Controller feature integrated drive electronics and sensor-less electronic commutation.
With our professional technical team, we can produce various power rated Brushless DC motors such as 1/2HP,1HP,1.5HP,2HP,3HP,5HP,10HP… brushless DC Motors. Please feel free to contact our team at info@volcanomotors.com for any technical support.

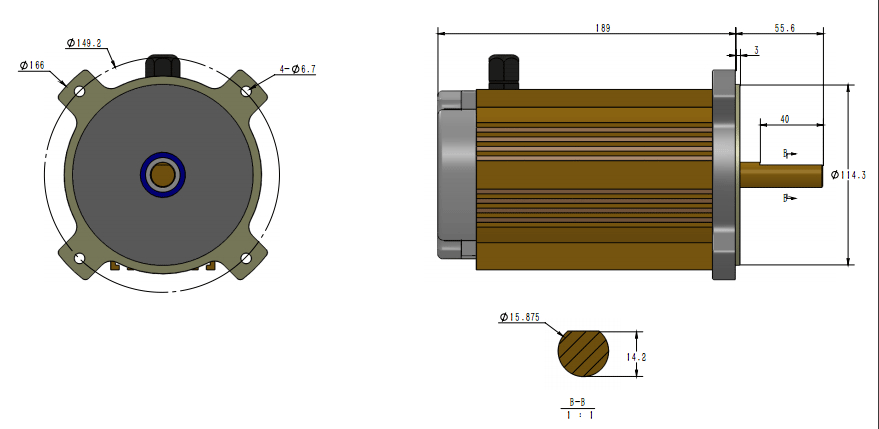

Detailed Images

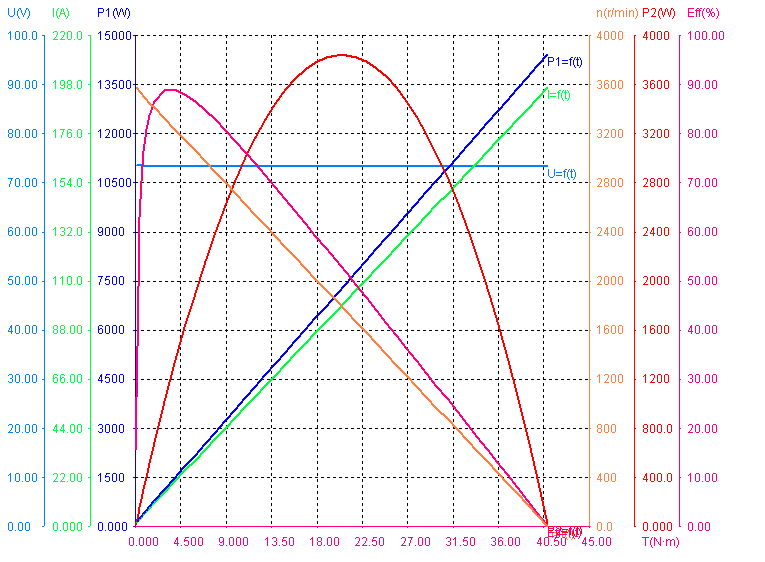

Performance of 1500W 72V 3200RPM brushless DC motor
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| BLDC0.9-100 | 0.9 | 24 | 44.6 | 2600 | 3.31 | 8 | 84 | 60 |
| BLDC1.2-100L | 1.2 | 24 | 63.3 | 4200 | 2.73 | 8 | 79 | 60 |
| BLDC1.2-100 | 1.2 | 36 | 39.7 | 2270 | 5.05 | 8 | 84 | 60 |
| BLDC1.25-100 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| BLDC1.5-100 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
| BLDC1.5-100 | 1.5 | 72 | 23.5 | 3200 | 4.48 | 8 | 89 | 61 |
| BLDC2.0-100 | 2 | 24 | 98.6 | 3360 | 5.68 | 8 | 84.5 | 61.5 |
| BLDC2.5-100 | 2.5 | 24 | 123 | 3350 | 7.13 | 8 | 84.7 | 61.5 |
Advantages of Brushless DC motors
- Lower Maintainance and longer lifetime – no brush and commutator erosion
- Lower noise – the elimination of brush contact
- Higher power to weight ratio
- Higher efficiency ( in general higher than 90%)
- Lower temperature rise – more efficient heat dissipation due to winding construction
- Reduction of EMI
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
